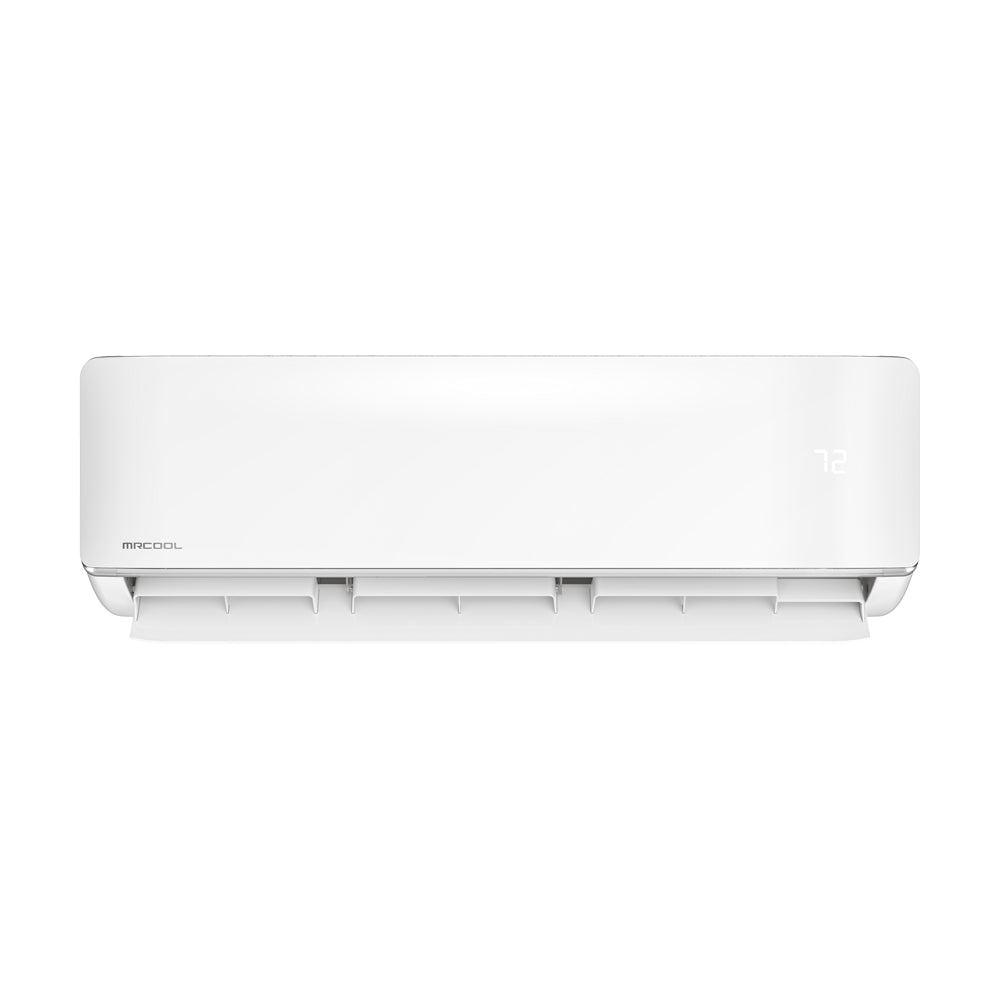

MRCOOL® 36k DIY 5th Generation Mini-split Air Handler 230v

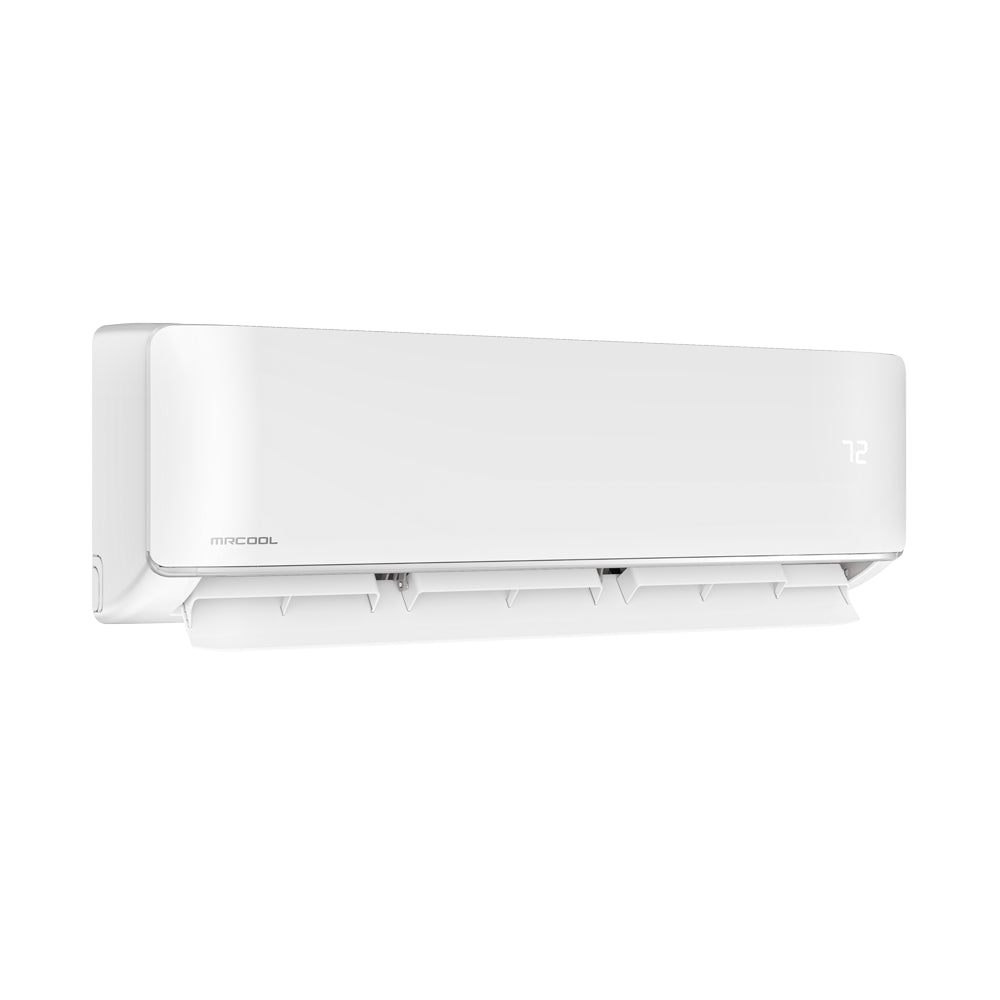

MRCOOL® 36k DIY 5th Generation Mini-split Air Handler 230v - Image 2

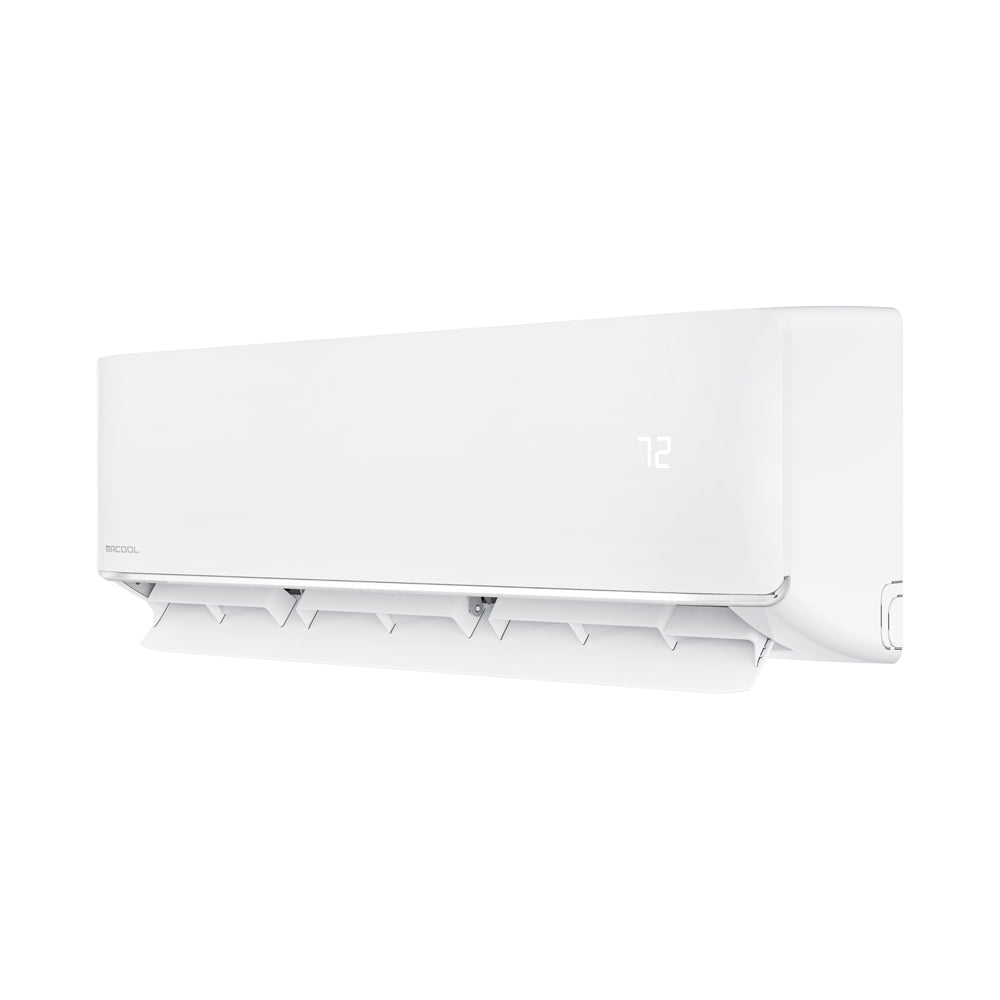

MRCOOL® 36k DIY 5th Generation Mini-split Air Handler 230v - Image 3
MRCOOL® 36k DIY 5th Generation Mini-split Air Handler 230v - Image 4
MRCOOL® DIY® 5th Gen · Wall-Mount Air Handler

36K BTU Wall-Mount Air Handler

MRCOOL® 36k DIY 5th Generation Mini-split Air Handler 230v

Model: DIY-36-HP-WMAH-230D25-O

$1,281.00Free shipping
36KBTU
230VPower
  • Free shipping to the lower 48 · tracking emailed
  • 7-yr compressor / 5-yr parts warranty
  • No vacuum pump or special tools
  • Real install help from people who've done it
Overview

The 5th Generation MRCOOL® DIY® 36k BTU Ductless Mini-Split Heat Pump is a powerful and efficient option for heating and cooling spaces up to 1,550 sq. ft. Perfect for large rooms or open areas, this system is designed for true DIY installation—no special tools or professional assistance required. It’s a fast, affordable way to upgrade your home’s comfort.
The included DIYPRO® cable makes installation even easier by eliminating the need for electrical conduit, while offering added protection against outdoor elements and wildlife damage.
Controlling your comfort is simple and flexible. Use the included wireless remote, connect through the SmartHVAC app on iOS or Android, or manage the system hands-free with Amazon Alexa or Google Assistant. With the Follow Me® feature, the system senses the temperature around the remote and adjusts accordingly, providing more precise and even comfort. Dry Mode also helps by reducing humidity and improving indoor air quality.
The outdoor unit includes a corrosion-resistant Gold Fin® condenser coating, ideal for homes in coastal or humid environments.
For further peace of mind, you’ll receive a 7-year compressor warranty and 5-year parts warranty. This system is also eligible for the MRCOOL® Care Program. Enjoy smart control, dependable performance, and easy installation with MRCOOL® DIY®.

Shipping & returns

Free shipping to the lower 48. Orders are processed within 1–2 business days and we email tracking as soon as your order ships. See our Shipping Policy and Returns & Refunds.

Other sizes

Every wall-mount size

6K 230V $457 9K 115V $745 9K 230V $532 12K 115V $768 12K 230V $689 18K 230V $931 24K 230V $965 36K 230V $1,281
Works with

It all mixes and matches.

Every unit here is MRCOOL® DIY® 5th Gen. These are the pieces that pair with this one.

Outdoor condensers
36K condenser · 230V $2,488 48K multi-zone · up to 6 zones$3,228 55K multi-zone · up to 6 zones$3,809
Line sets
3/8″ × 5/8″ line sets 24K · 36K · 16–50 ft

Building a multi-zone? Our system builder checks every combo against MRCOOL's approved matchups.

Before you buy
What size do I need?Sizing guide Breaker, wire & voltageElectrical guide Line set lengths & couplersLine set guide How the install worksInstall guide
How it goes in

Four steps. One weekend.

  1. Hang the air handler

    Level the wall plate, drill the pass-through, and hang the indoor unit.

    Indoor

  2. Set the condenser

    Place the outdoor unit on a pad or wall bracket with clearance to breathe.

    Outdoor

  3. Connect the lines

    Run the pre-charged Quick Connect® line set and tighten both ends with two wrenches.

    Lines

  4. Power up

    Hook up the dedicated circuit, pair the SmartHVAC app, done.

    Power

Electrical hookup must follow local code.
